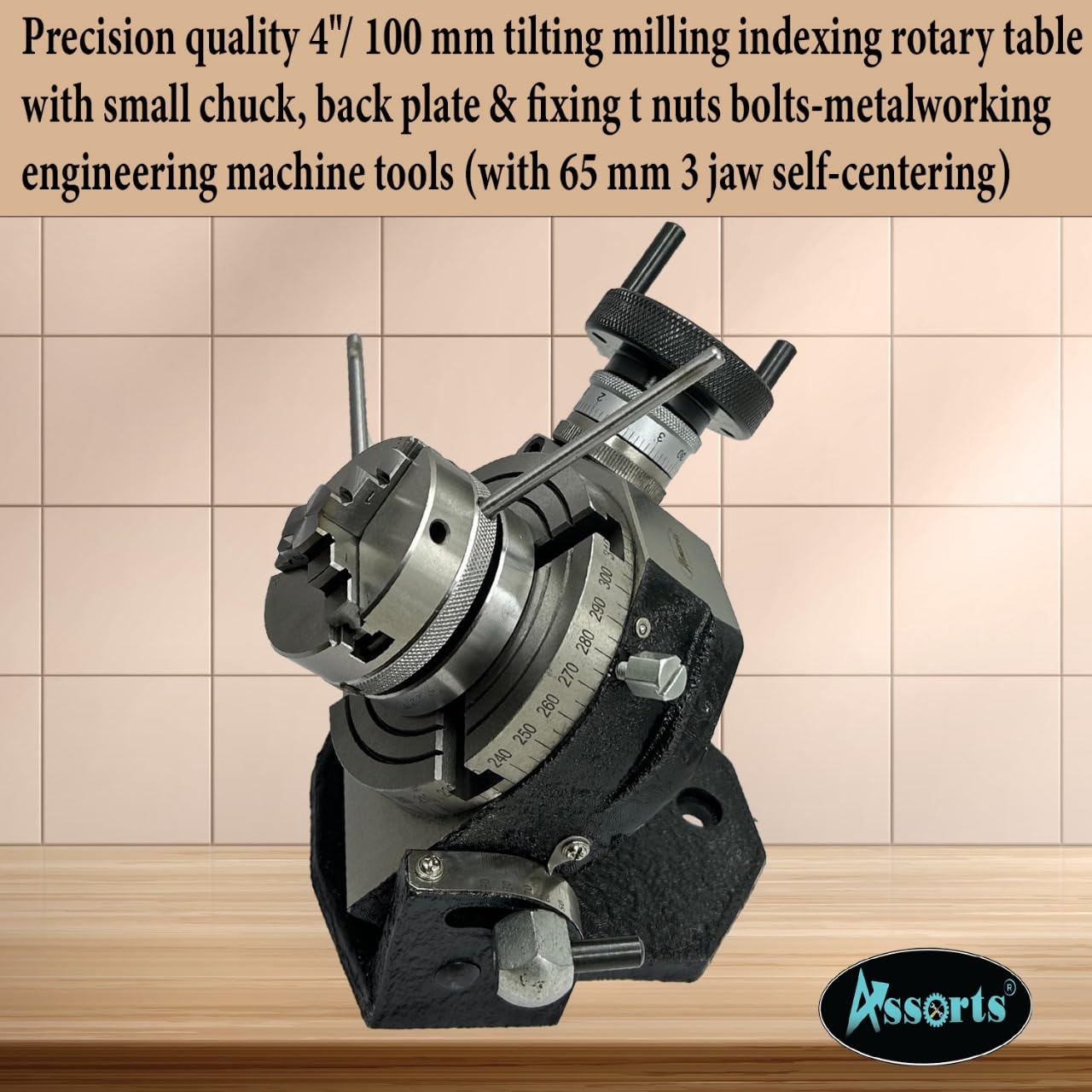

Features to tilts between 0- 90 degrees & can be locked at any position. Table diameter 100 mm table is graduated 360 degrees. Worm gear ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 degrees. Center height in vertical position: 2-5/8" (66 mm approx.) hand wheel is graduated in divisions of 10 min & can be set to zero. Can be mounted both in horizontal & vertical position. Supplied with a suitable small 65 mm 3 jaws self centeing chuck with back plate & fixing t nuts bolts. 65 mm 3 jaws self centering chuck m14 x 1 mounting thread back plate also has m14 x 1 thread spigot to mount the chuck on it. Back plate is drilled in a manner that it can be fitted both for 3 as well as 4 slot rotary table. Suitable t -nuts are also supplied.
