A great combo of 3""/80 mm Rotary table with 65 mm self centering chuck with back plates & Tnuts- A perfect milling combo for smaller mills.

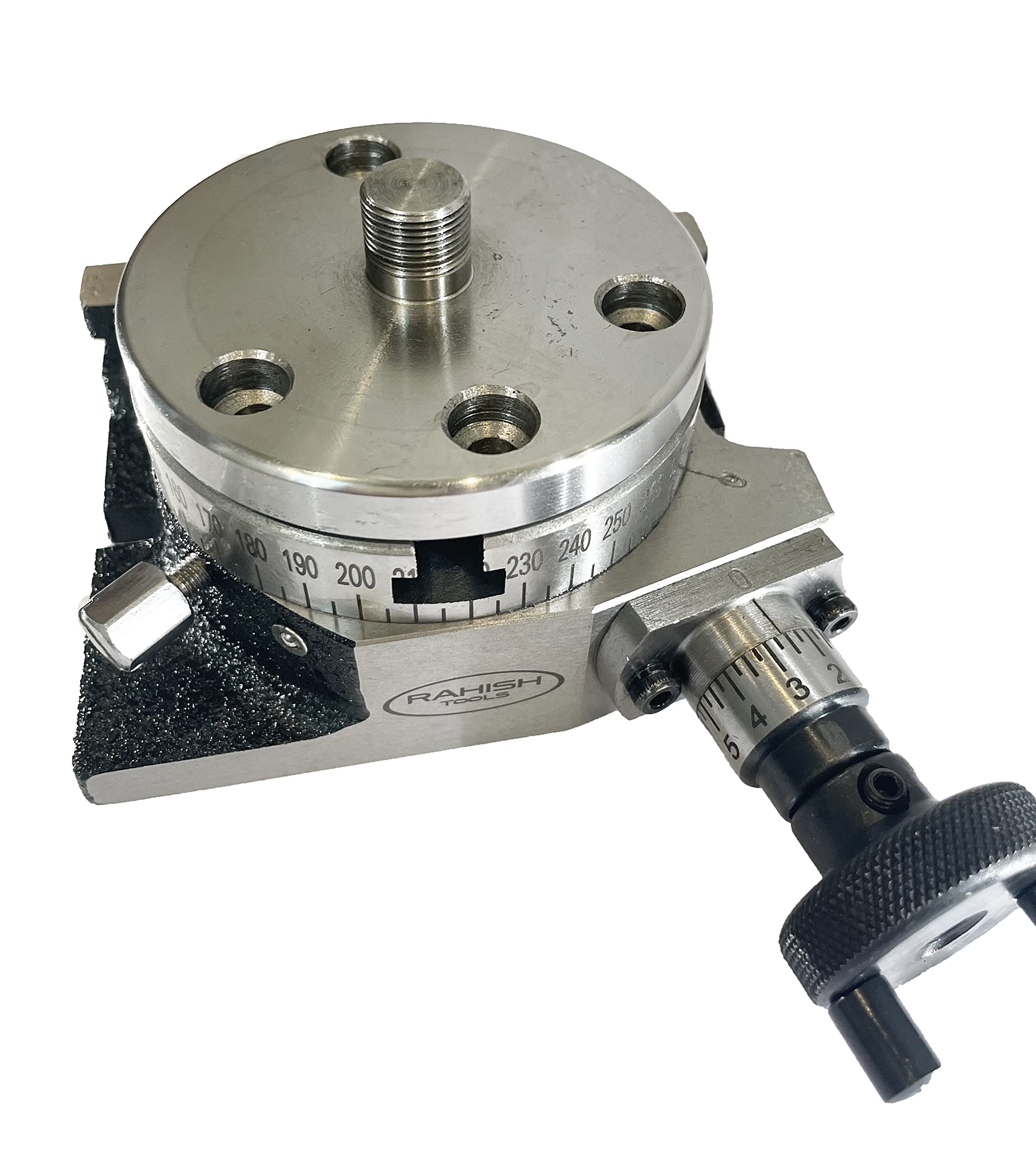

Quality Low Profile Rotary Table diameter 80 mm (3""Inches ). Table is graduated 360 Degrees || Worm Gear Ratio -136, which means that the 1 handle rotation shall turn the table by 10 Degrees.
Center Height in vertical position without chuck 2-5/8"" (66 mm approx) || Hand wheel is graduated in divisions of 10 min & can be set to zero.

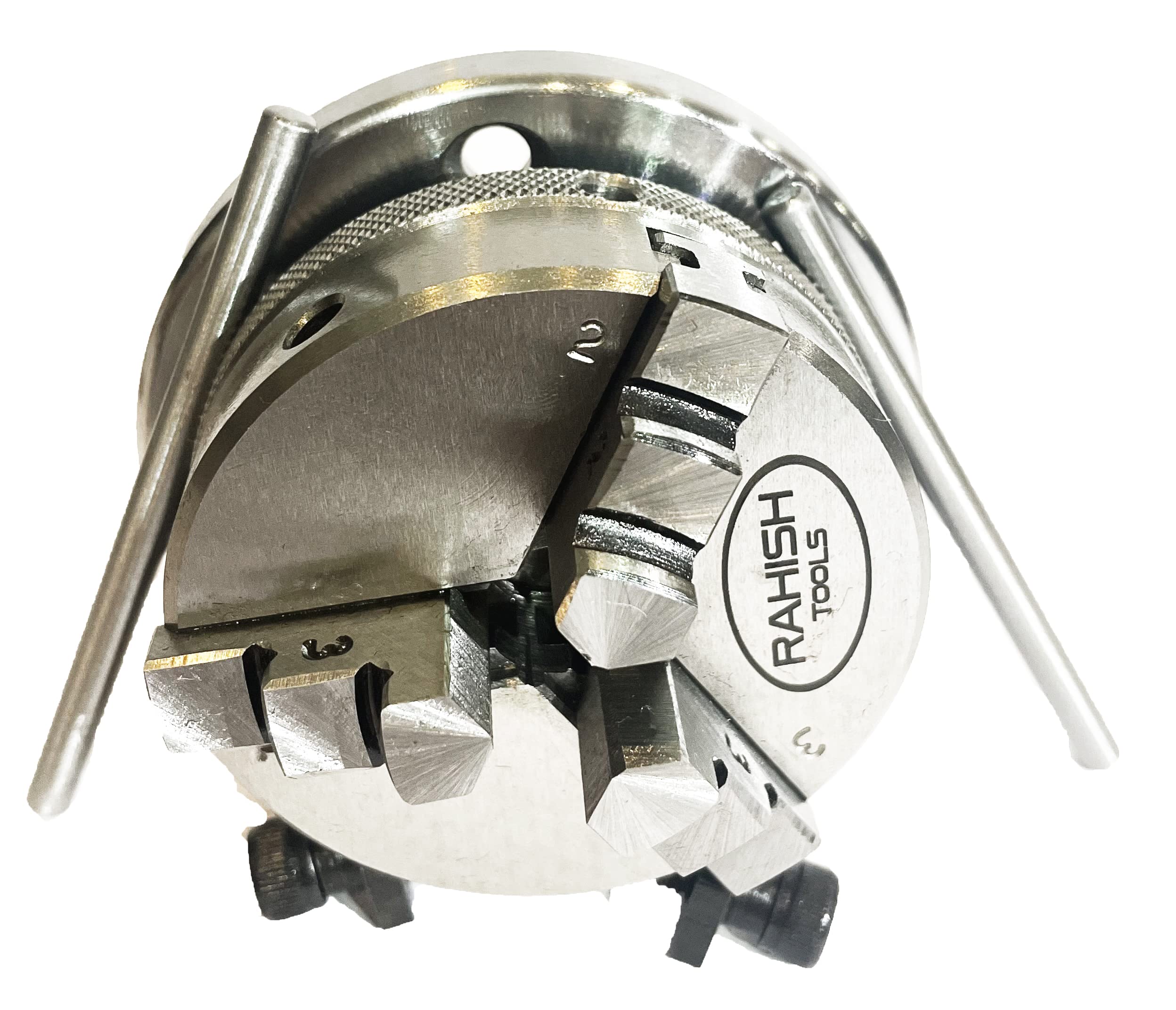

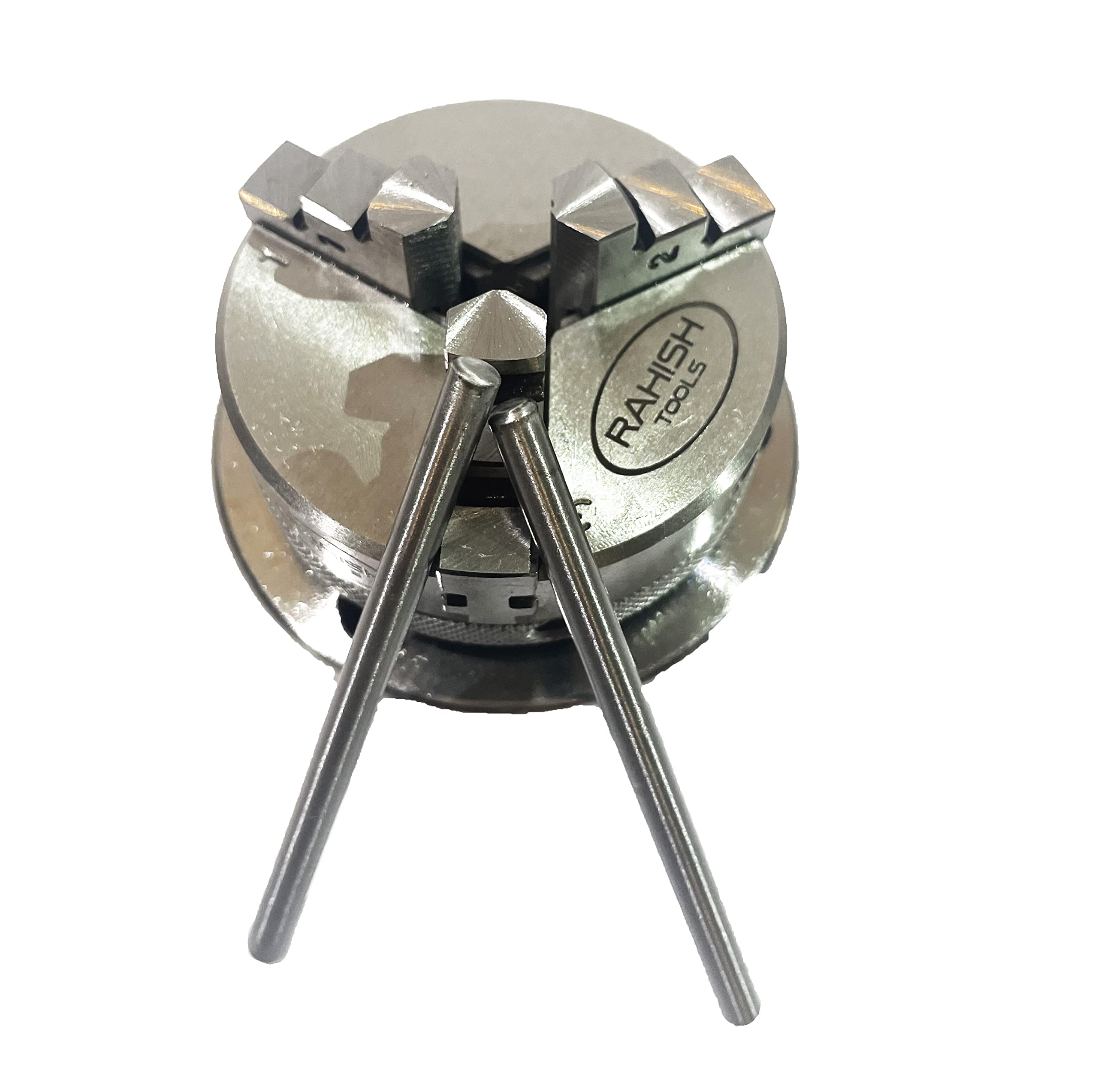

65 mm 3 Jaws Self Centering Chuck M14 x 1 mounting Thread || Back Plate also has M14 x 1 thread Spigot to mount the Chuck on it.

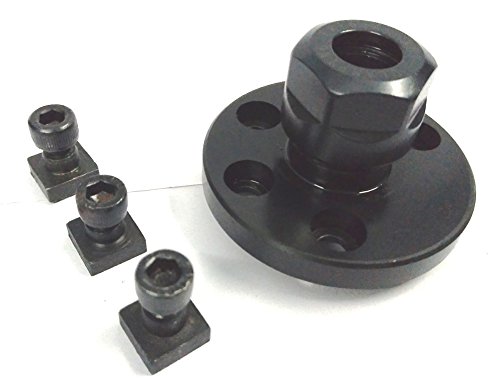

Back Plate is drilled in a manner that it can be fitted ONLY to 4 Slot Rotary Table || Suitable T -nuts are also supplied.
